Lambda Labs MF-15 datasheet

MF-15 images



MF-15 description

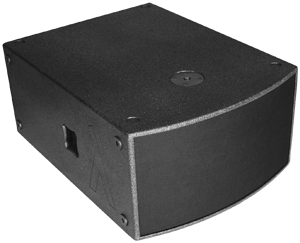

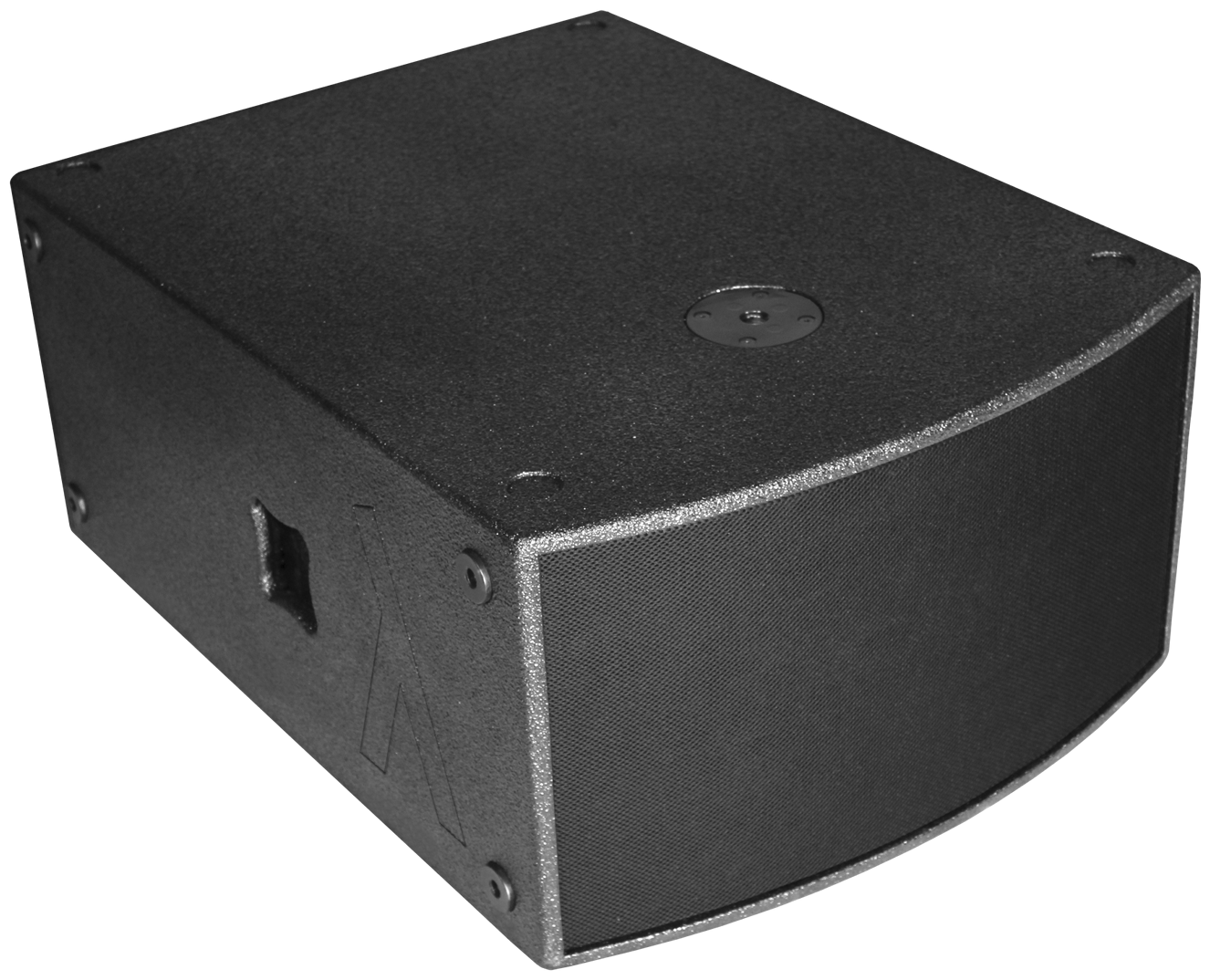

MF-15 – The flexible basement

After all, we’ve repeatedly mentioned the wolf in the mink fur coat. But its look is elegant appearance and camouflage at the same time. At first the small dimensions and the effortless lightweight just reveal the extraordinary good handling of this freely scalable high-power subwoofer, but let its flexibility and far-reaching combination possibilities only be divined. Once plugged, the Mf-15 reveals its first class inner values: A progressive subwoofer system with astonishing low-frequency performance and finest resolution. And this over the full bandwidth. Means entirely without any additional sub lows and other heavy equipment. The 15" ultra long excursion armament with the especially crafted membrane is highly loadable and ensures a gigantic output with its ±16mm linear excursion capability. Fully free of mechanical powercompression, and due to the sophisticatedly developed exponential structure of the Manifold, moreover with a maximum of efficiency. And this far over 2 octaves.

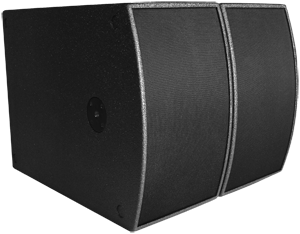

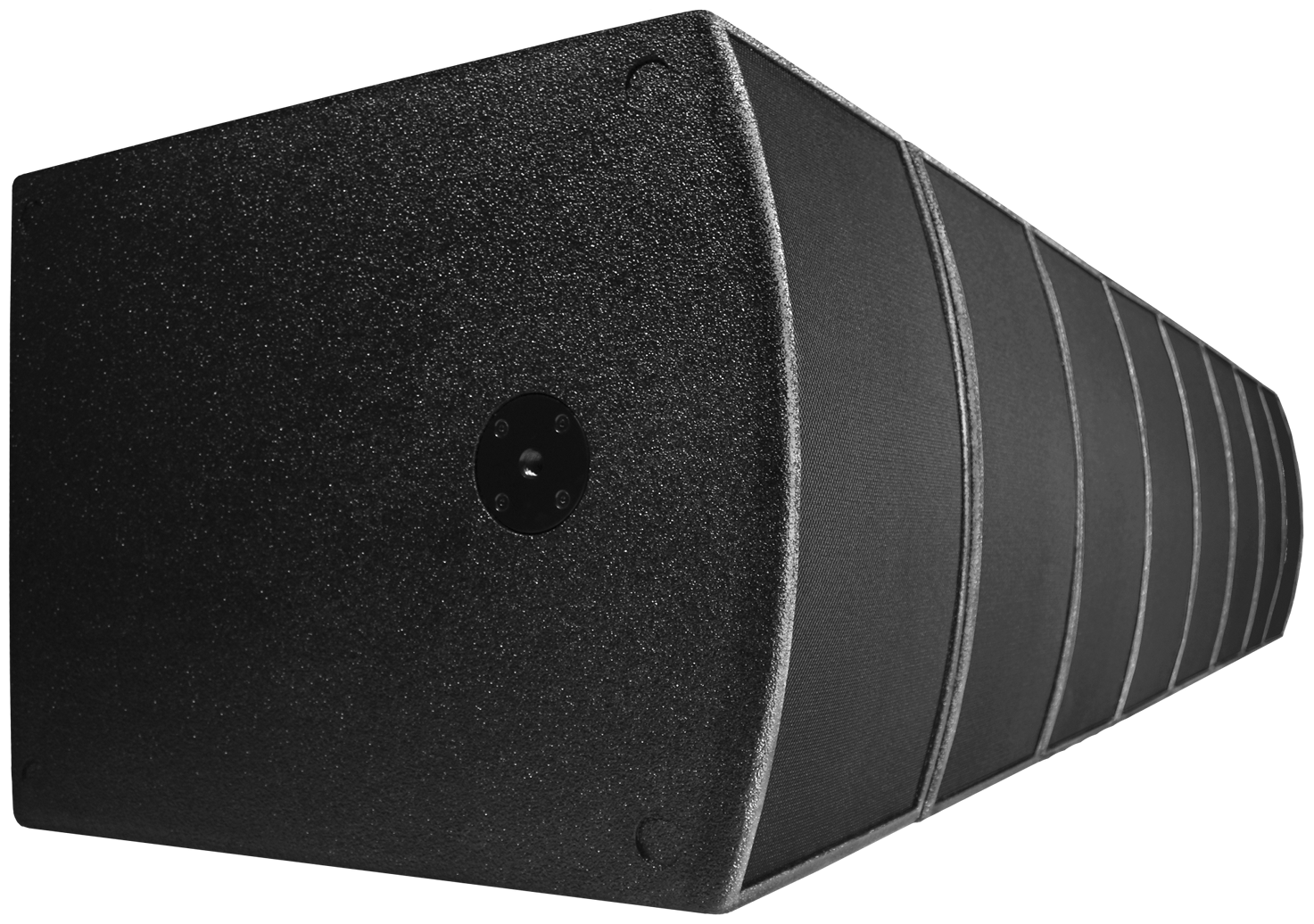

The operation of the MF-15 is recommended with an amping power of 1600W RMS. With its numerous installation variants, the compact MF-15 construction fits in any trunk and even beneath the smallest stage, but still rivals “the big ones” and excels in the creation of complex arrays and intentional directivity. On stage, the design convinces as precise drum fill or flown low-range bass extension. The standard stand just underlines the flexible application possibilities. Sounds good, right? And the old hands of the sector agree with that, while we educe some guce bumbs to them every now and again. If this is caused by the MF-15 itself or by the whole system of course is difficult to figure out...

MF-15 downloads

MF-15 PDF datasheet
MF-15 jpeg images
MF-15 png images

MF-15 technical data

System
High power subbass
in Manifold technology
Configuration

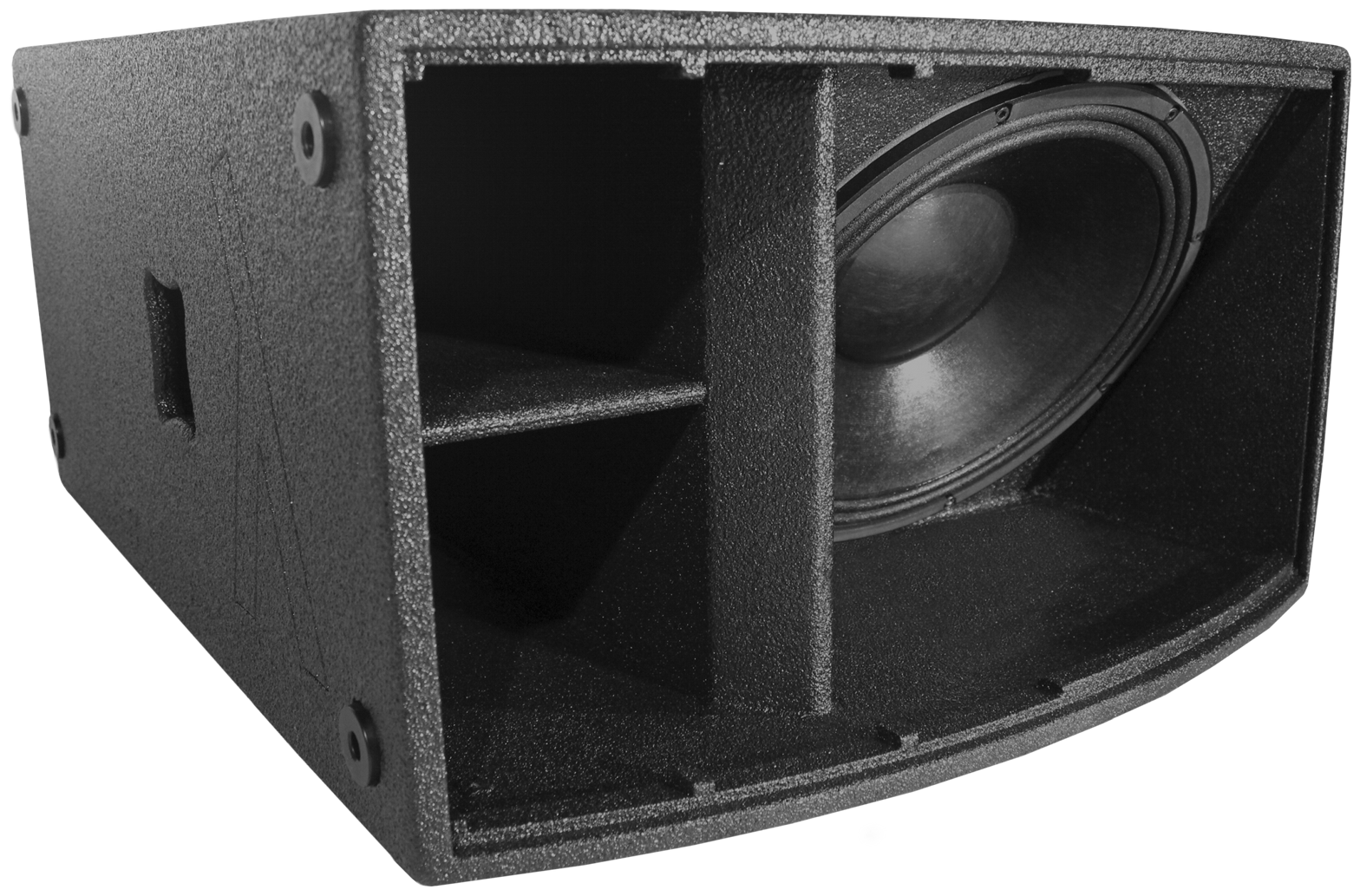

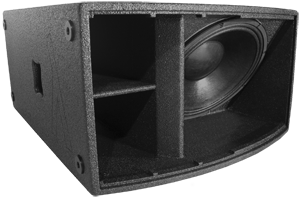

1 x 15" ultra long excursion driver
with 4" VC and hardened cone
Aluminium demodulation rings
Power Handling
1600W RMS amping power
Frequency Response
35–200Hz (+/- 3dB)
Sensitivity
98dB / 1W / 1m

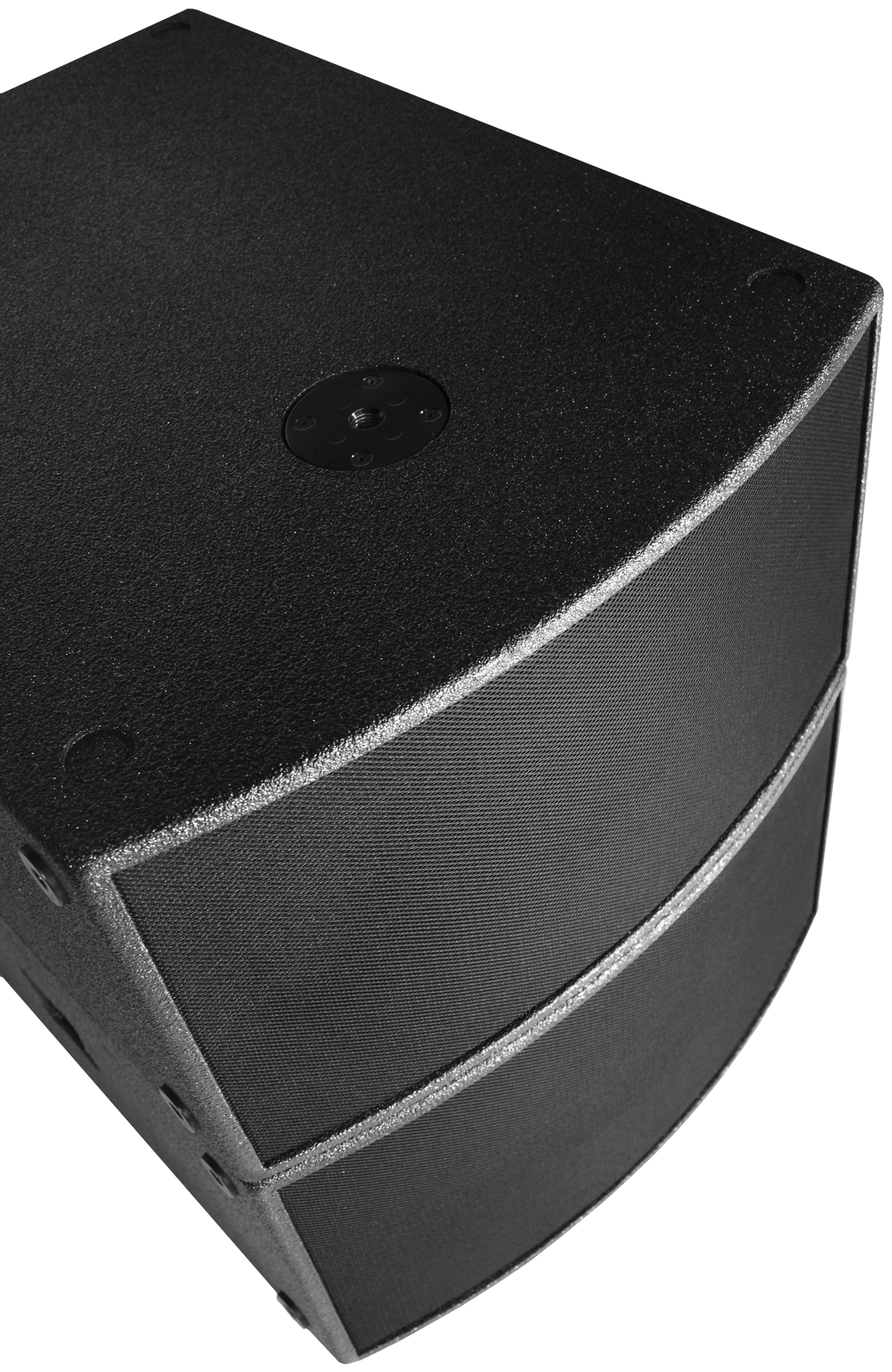

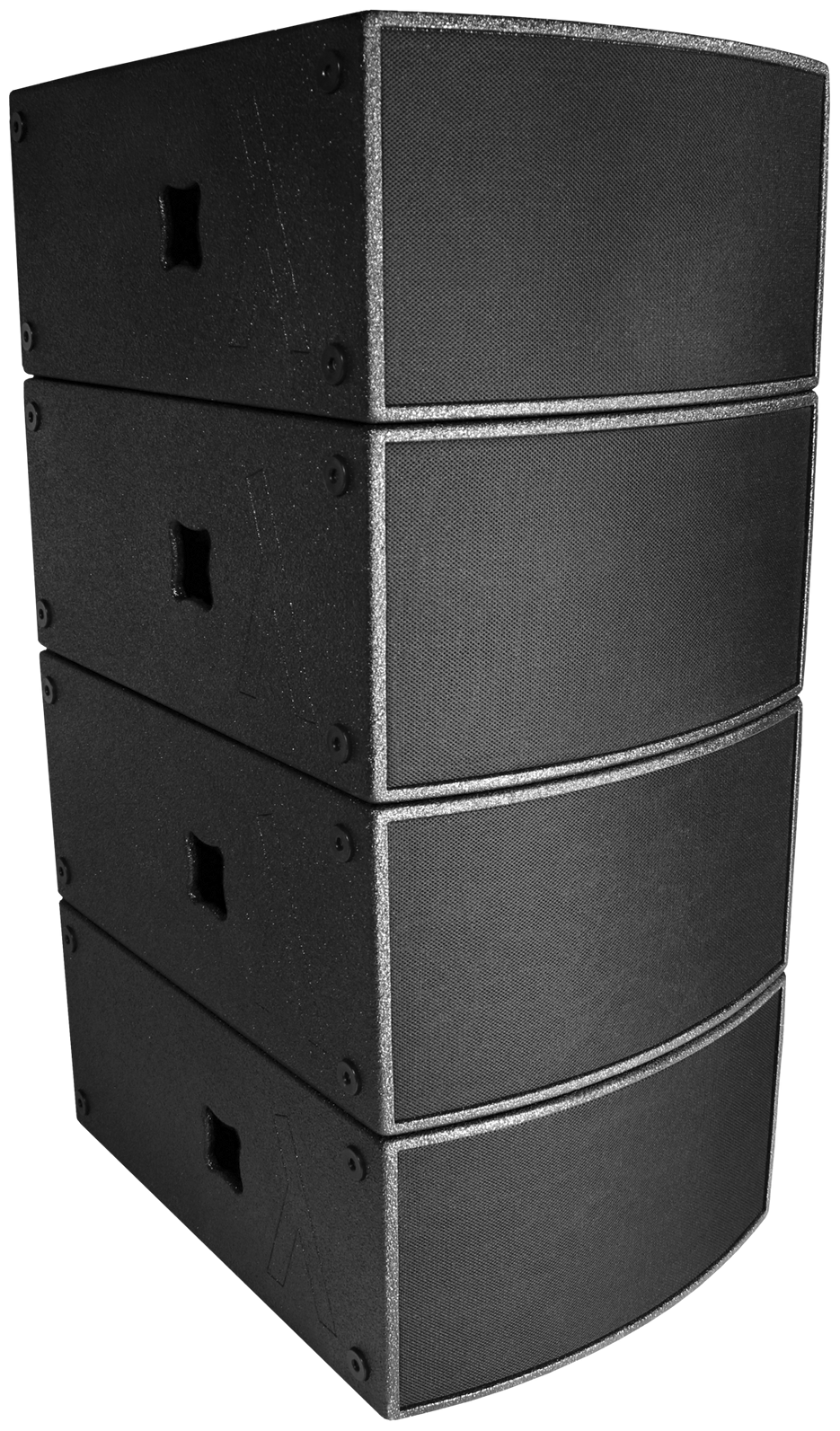

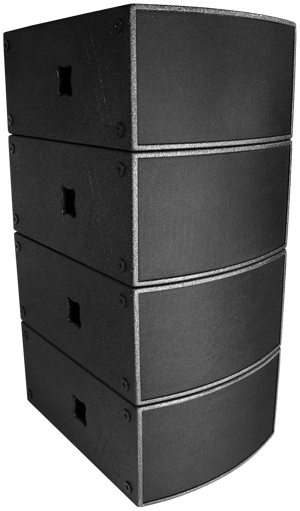

104dB / 1W / 1m – stack of 4
Connection
2x Neutrik NL4 Speakon
Impedance
8Ω
Enclosure
Rigid braced construction of special 15mm lightweight-wood
Finish
High-density polyurethane-coating
Black
Front Cover
Weather-resistant front fabric on coated 1.5mm perforated steel



Height
14.8" / 377mm
Width
25.9" / 657mm
Depth
34.3" / 872mm
Weight
29kg

MF-15 accessories

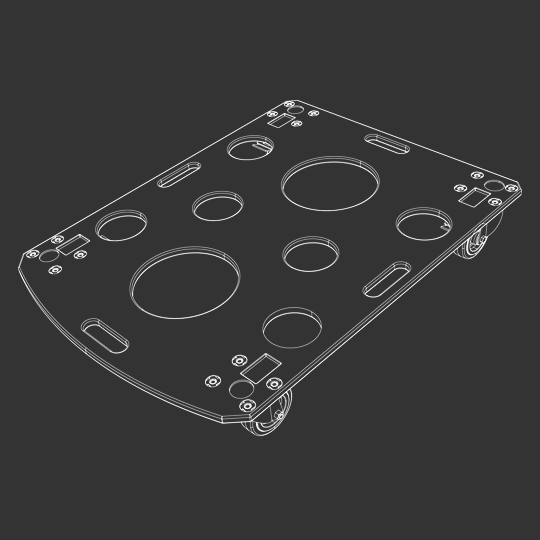

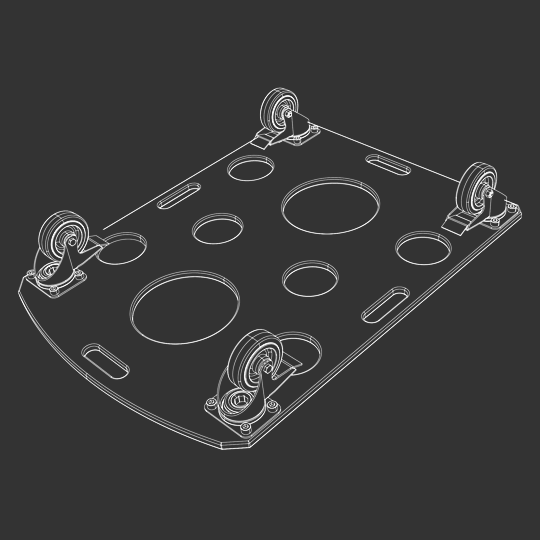

Stack Wheelboard for Subwoofer MF-15A / Mf-15

Wheelboard for easy transportation from 1 to 4 MF-15A / MF-15 Subwoofers on 4 smooth running wheels.

Abmessungen: 87 x 65 x 14,5 cm
Weight: 8.5 kg
Material: Laminated Wood, phenolic resin coating

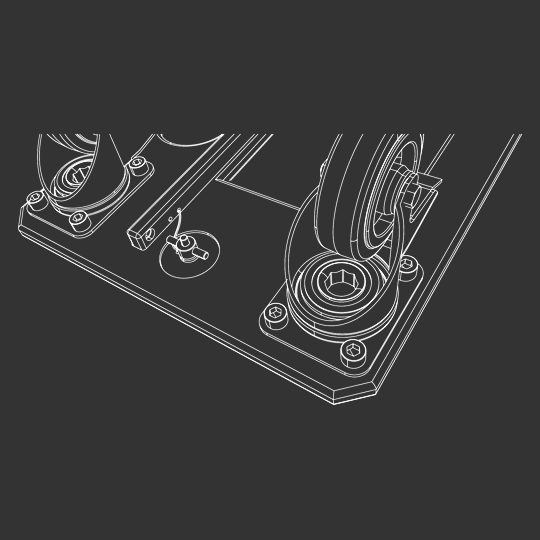

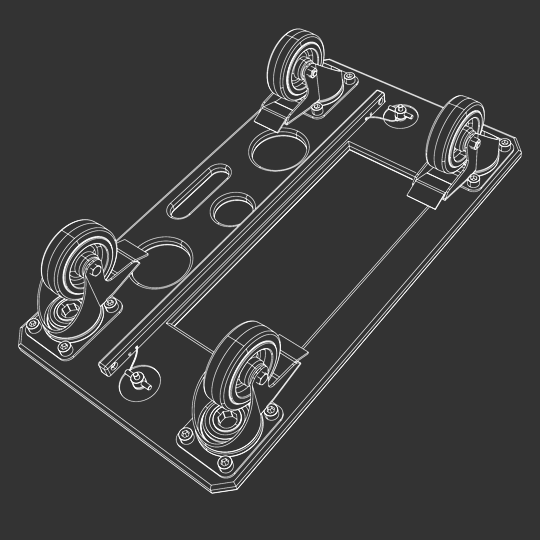

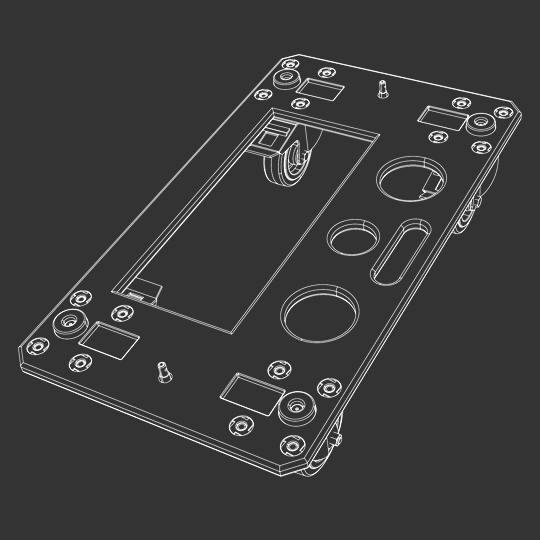

Wheelboard for Subwoofer MF-15

Wheelboard for easy transportation of one MF-15 Subwoofer on 4 smooth running wheels. Delivery of the wheelboard includes 2 combination pins in loss-free connection.

The Combi Pin provides quick and easy attachment of the transport option to the loudspeaker. Optional use allows for simple plugging or additional fastening for vibration-free attachment of the wheelboard.

Measurements: 65 x 37 x 14.5 cm
Weight: 5.9kg
Material: Laminated Wood, phenolic resin coating

Combi Pin / Combi Cluster Pin

The Combi Pin provides quick and easy connection of all wheelboard options.

Optional use allows for simple plugging or additional fastening for vibration-free attachment of the wheelboard. Delivery of the wheelboard includes 2 combination pins in loss-free connection.

The Combi Cluster Pin provides zero-play joining between the T-Bracket and the Cluster bracket in a Cluster compound. Construction of the Combination Cluster Pin is identical to the Combination Pin, including however an additional self-locking counter nut in its delivery. The Combination Cluster Pin fits all cluster options equally. Depending on cluster size, 2 or 3 Combination Cluster Pins are required.

Diameter: 8/10 mm
Material: Stainless steel
Colour: Black

Distance rod with plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate.

Weight: 2.5 kg
Height: 900–1380 mm
Max. load capacity: 35 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Distance rod with hand crank and plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate. The comfortable hand crank facilitates an easy and secure height adjustment.

Weight: 3.8 kg
Height: 920 to 1.520 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm
